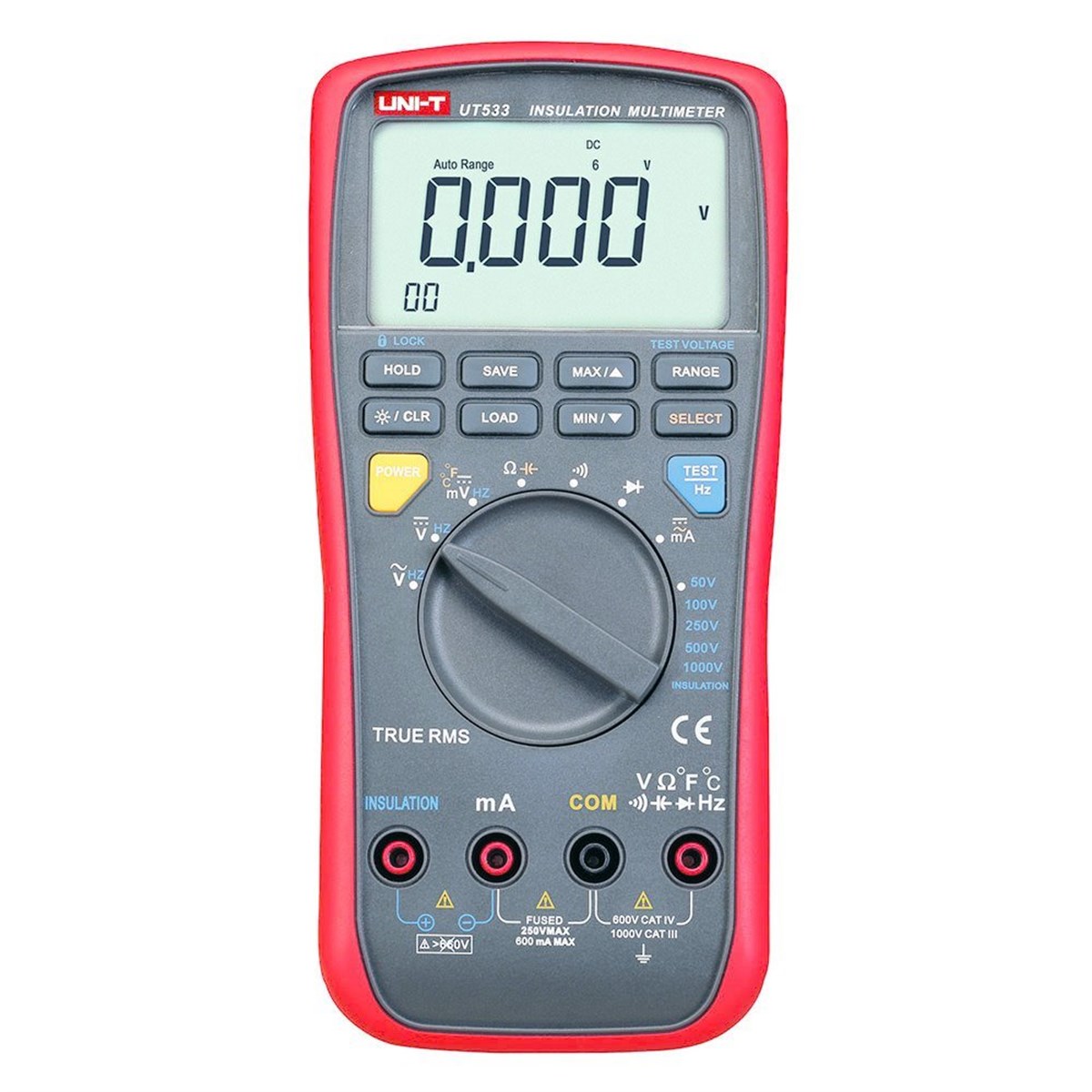

UNI-T UT 533 İzolasyon Megeri True RMS Multimetre UT533
UNI-T UT 533 İzolasyon Megeri True RMS Multimetre UT533

UNI-T UT 533 İzolasyon Megeri True RMS Multimetre UT533 (UT533)

Fiyat : $332.64(KDV Dahil)
İndirimli : $237.60(KDV Dahil)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

Unit UT 533 Toprak Megeri ve Multimetre



Teknik Özellikler



pecifications Range Best Accuracy
Model 　 UT531 UT533
Insulation Resistance(Ω) Test Voltage 500V/1000V 0%～10% 　
250V/500V/1000V 　 　
50V/100V/500V/1000V/2500V 　 0%～10%
50V 0.1MΩ~50.0MΩ 　 ±(3%+5)
100V 0.1MΩ~100.0MΩ 　 ±(3%+5)
250V 0.2MΩ~99.9MΩ 　 ±(3%+5)
100MΩ~250MΩ 　 ±(3%+5)
500V 0.5MΩ~99.9MΩ ±(3%+5) ±(3%+5)
100MΩ~500MΩ ±(3%+5) ±(3%+5)
1000V 4.0MΩ~99.9MΩ ±(3%+5) ±(3%+5)
100MΩ~600MΩ ±(3%+5) 　
100MΩ~999MΩ 　 ±(3%+5)
1.00GΩ~2.00GΩ 　 ±(5%+5)
Short-Circuit Current <2mA √ √
Multimeter Specifications
DC Voltage (V) 60mV/600mV/6V/60V/600V/1000V ±(0.3%+4) ±(0.3%+4)
AC Voltage（50Hz~1KHz） 6V/60V/600V/1000V ±(1%+3) ±(1%+3)
DC Current (A) 60mA/600mA ±(1.0%+2) ±(1.0%+2)
AC Current（50Hz~1KHz） 60mA/600mA ±(1.5%+2) ±(1.5%+2)
Resistance (Ω) 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/40MΩ ±(0.9%+2) ±(0.9%+2)
Capacitance (F) 10nF/100nF/1μF/10μF/100μF ±(3%+5) ±(3%+5)
Frequency (Hz) 60Hz/600Hz/6KHz/60KHz/600KHz/1MHz ±(0.1%+3) ±(0.1%+3)
Temperature (°C) -40°C ～ 537°C 　 ±(1%+10)
Temperature (°F) -40°F～998°F 　 ±(1%+18)
Features
Display Count 　 6000 6000
Auto Range 　 √ √
True RMS 　 √ √
Diode 　 √ √
Auto Power Off 　 √ √
Continuity Buzzer 　 √ √
Low Battery Indication 　 √ √
Data Hold 　 √ √
MAX/MIN 　 √ √
Data Logging 　 99 99
LCD Backlight 　 √ √
Full Icon Display 　 √ √
General Characteristic
Power 1.5V Alkaline Batteries（LR6)×6
LCD Size 81mm X 46mm
Product Color Red and Grey
Product Net Weight 505g
Product Size 96.7mm X 202.8mm X46 mm
Standard Accessories UT531-Batterise, Test Lead, Alligator Clip, Carrying Bag
UT532/533-Batterise, Test Lead, Alligator Clip, Point Contact Temperature Probe, Carrying Bag
